LXC Ultrasonic Water Meter

LXC Ultrasonic Water Meter

Goldcard smart ultrasonic water meter integrates metering, data collection, storage, communication, and valve control. Featuring ultrasonic technology and a modular communication design, it supports multi-stage valve regulation while delivering high accuracy, fast response, low power consumption, and long-term stability in a compact form factor.

Main Advantages

Functional Advantage
  • High-precision ultrasonic measurement, accuracy class2, stable and reliable.
  • Supports remote valve control with 5-level opening adjustment(0%, 25%, 50%, 75%, 100%).
  • Built-in water temperature sensor, pressure sensor.
  • Comprehensive alarm system: reverse installation,over-flow, abnormal flow, etc.
  • Battery life exceeds 10 years or even longer. (depending on different operating conditions)
  • Large datastorage, including daily, monthly, and annual consumption.
Unique Structure Design
  • Communication module is replaceable. Easy network switching & convenient on-site maintenance.
  • The water meter integrates photosensitive button function for better human-computer interaction.
  • IP68waterproof and dustproof, strong environmental adaptability.
Telecommunication Advantage
  • The water meter is connected to the data center through a network to support prepayment and other functions.
  • Remote data communication: NB IOT/4G

Technical Specifications

Name LXC Ultrasonic Valve Controlled Pressure Monitoring Water Meter
Accuracy Class Class2
Range Ratio R400
Material Copper/Stainless steel
Nominal Diameter(mm) DN15 DN20 DN25
Permanent  Flow rateQ3(m³/h) 2.5 4.0 6.3
Minimum Flow rate Q1(L/h) 6.25 10 25
Starting Flow(L/h) 4 5 6
Pressure Loss △p63
Display Contents Cumulative flow(m³), Instantaneous flow(m³/h), Temperature(℃), Cumulative effective operation time(h) Date (year/month/day), Clock (hour/minute/second), Software version, Screen detection
Display 10+digit liquid crystal display with prompt symbols
Minimum Resolution Cumulative  flow(0.0001m³), Instantaneous flow(0.001m³/h) , Temperature(0.01℃)
Indication Range 0m³~+9,999,99.999m³
Key Photosensitive button
Data

Communication

 Remote  NB-IoT / 4G (Default:Goldcard Security Protocol)
Local Near-infrared communication


Data Storage

 Latest 30 days, half-hourly data

Latest 90 days, daily data

Latest 120months, monthly data

50 abnormal alarm logs (such as low voltage, metering  anomaly,etc.) data can be preserved for 100 years after power outage
Maximum Admissible Pressure 1.6 MPa
Maximum Admissible Temperature T50
Flow Profile Sensitivity Class UO/D0
Environmental and Electromagnetic Class O/E2
Power Supply DC3.6V
Protection Class IP68
Storage Environment 0.1 °C to 60 °C, ≤ 100% RH
Valve Support different opening degree control: 0%、25%、50%、75%、100%
Pressure sensor 0–1.6 MPa (0–16 bar)

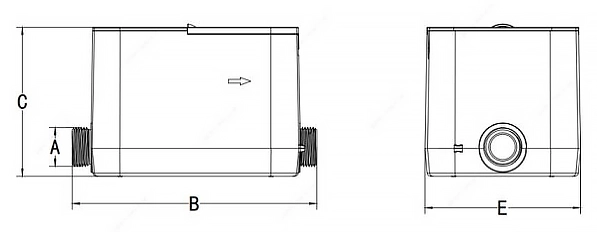

Dimensions

DN A B C E
G R mm
LXC-15FC G 3/4B R1/2 165 100 105
LXC-20FC G1B R3/4 190 100 105
LXC-25FC G11/4 B R¹ 260 100 105
